SERAPID Vertical LinearBeam (VLB) Advanced Linear Actuators for Elevators, Freight Lifts, and Industrial Automation
SERAPID Vertical LinearBeam (VLB)
Modern industries require reliable, efficient, and precise motion solutions capable of moving people, materials, and equipment safely over long vertical distances. The SERAPID Vertical LinearBeam (VLB) is an innovative electro-mechanical lifting system that combines the advantages of advanced linear actuators, patented Rigid Chain Technology, and intelligent control systems to deliver exceptional performance across a wide range of industrial applications.
Unlike traditional hydraulic elevators or screw-based lifting mechanisms, the VLB is a compact, high-performance electric lifting system designed to provide smooth motion, precise position control, and long-term reliability. The technology is ideal for elevators, freight lifts, accessibility lifts, industrial handling equipment, and automated material handling applications where space, efficiency, and performance are critical.
The SERAPID VLB represents a significant advancement in linear motion engineering. Traditional screw actuators, ball screw systems, hydraulic lifts, and belt-driven lifting solutions often require large machine rooms, extensive maintenance, or complex installation requirements. The VLB eliminates many of these challenges through its unique electro-mechanical design.

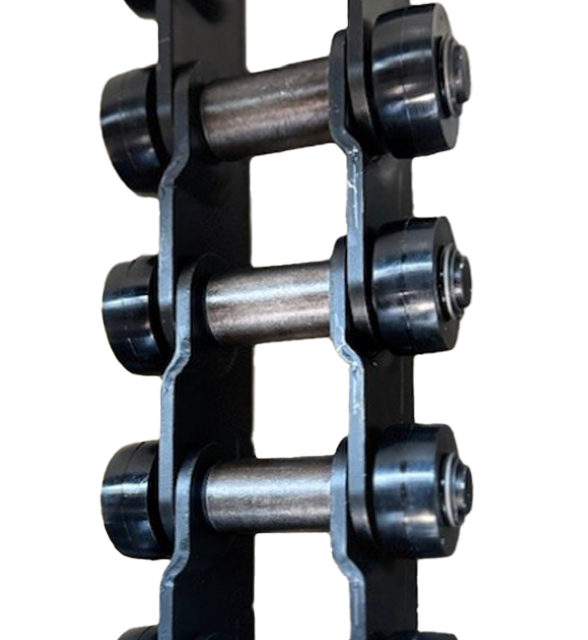

At the core of the product is SERAPID’s patented Rigid Chain Technology. Unlike conventional linear actuators, the rigid chain forms a solid lifting column when extended, providing exceptional strength, stability, and lifting capability. When retracted, the chain stores compactly within the drive housing, creating a highly efficient and space-saving system.
This innovative design allows the VLB to deliver powerful lifting performance without the limitations often associated with hydraulic cylinders, screw jacks, or conventional linear actuators.
One of the most important advantages of the VLB is its compact footprint. Many elevator and lift installations are constrained by available space, making traditional lifting technologies difficult to implement. The VLB’s innovative architecture eliminates the need for a machine room while maintaining exceptional lifting performance.
The compact design makes the product ideal for retrofit projects, modernization initiatives, and new construction where space efficiency is a priority. Engineers can integrate the system into existing structures while maintaining the desired lifting speed, load capacity, and positioning accuracy.
Compared to traditional hydraulic or ball screw systems, the VLB offers a more efficient use of available installation space while delivering reliable motion control.
Precise Position Control and Motion Accuracy
Precision is essential in modern lift and elevator applications. Whether transporting passengers, freight, or industrial materials, accurate stopping and positioning improve safety, reliability, and user experience.
The VLB provides precise position control through advanced encoder technology and intelligent feedback systems. The integrated motor and drive package delivers smooth, repeatable movement throughout the entire lifting cycle.
This high level of control allows the system to maintain positioning accuracy within millimeters, ensuring reliable operation in demanding environments. The combination of precise motion, programmable feedback, and advanced automation capabilities makes the VLB an excellent choice for modern lifting applications.
Powerful Electric Motor Technology
The VLB utilizes a high-performance electric motor system specifically engineered for vertical lifting applications. Unlike hydraulic lifts that rely on pumps, fluid reservoirs, and pressure lines, the VLB employs an efficient electro-mechanical approach.

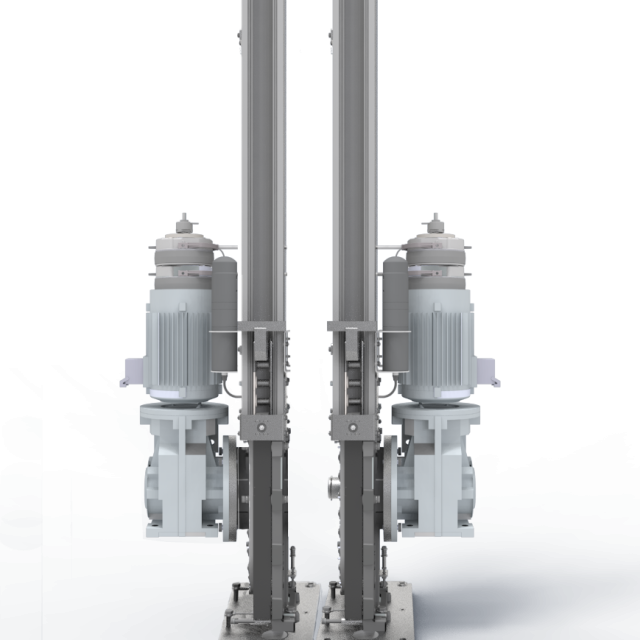

The motor drives the rigid chain mechanism through a robust gearbox and sprocket assembly. This driven architecture delivers smooth acceleration, controlled speed, and reliable load handling while reducing maintenance requirements.
Benefits of the electric drive system include:
- High energy efficiency
- Reduced maintenance requirements
- Precise speed and position control
- Elimination of hydraulic fluids
- Improved environmental performance
- Enhanced operational reliability
For facilities seeking sustainable and efficient lifting solutions, the VLB provides a compelling alternative to traditional hydraulic systems.
Industrial Applications for Vertical Transport
The versatility of the VLB makes it suitable for numerous industrial applications. The system has been developed to support both passenger and freight lifting requirements while maintaining exceptional reliability. Typical applications include:
The VLB supports passenger elevator applications with smooth, precise motion control and reliable operation.
High load capacity and robust mechanical strength make the VLB ideal for freight lifting applications.
The system integrates seamlessly into industrial handling equipment for material transport and positioning.
Manufacturing facilities benefit from the precise control and reliable performance of the VLB in production environments.
Smooth motion and precise positioning make the VLB suitable for accessibility lift applications.
The VLB’s compact design and reliable operation make it well-suited for railway station elevator applications.
Automated warehouse systems leverage the VLB’s automation capabilities for efficient material handling.
The flexibility of the system allows engineers to customize configurations based on specific project requirements, load capacities, and installation constraints.
The VLB delivers powerful lifting performance for heavy equipment transport systems in demanding industrial environments.
High Load Capacity and Mechanical Strength
Industrial lifting systems must withstand demanding operating conditions while maintaining safe and reliable performance. The VLB is engineered with exceptional strength and durability to support a broad range of load requirements.
The rigid chain architecture functions as a highly efficient mechanical lifting member capable of handling significant load demands while maintaining smooth and stable movement. Unlike conventional screw or belt-based technologies, the VLB offers superior performance for long travel distances and high-duty-cycle operations.
Its robust mechanical design supports continuous operation in demanding industrial environments, making it a preferred solution for heavy-duty lifting applications.
Automation and Smart Control Systems
Modern facilities increasingly rely on automation to improve efficiency and operational performance. The VLB integrates seamlessly into automated environments through advanced control architecture and programmable positioning capabilities.
Integrated feedback systems continuously monitor position, movement, and operating conditions to ensure reliable performance. The system can be connected to building management systems, industrial automation platforms, and facility-wide monitoring networks.
Automation benefits include:
- Programmable positioning
- Advanced motion control
- Accurate travel feedback
- Repeatable operation
- Reduced operator intervention
- Enhanced safety performance
These capabilities make the VLB an ideal solution for advanced industrial automation projects.
Designed for Reliability and Low Maintenance
Reliability remains a critical requirement for any lifting system. The VLB has been designed to minimize maintenance while maximizing operational uptime.
The elimination of hydraulic fluids reduces service requirements and removes many common maintenance concerns associated with traditional hydraulic lifts. Automatic lubrication options, robust chain guidance systems, and high-quality drive components further improve long-term performance.
Compared to hydraulic systems, ball screw solutions, and other conventional lifting technologies, the VLB offers lower maintenance costs and greater operational efficiency over its service life.
Flexible Configurations for Diverse Requirements
SERAPID offers a broad range of VLB configurations to support different applications and performance requirements. Single-unit installations can support lighter loads, while synchronized multiple-unit systems can accommodate higher capacities.
Available options include:
- Single or dual motor configurations
- Redundant drive systems
- Encoder-based positioning
- Automated lubrication systems
- Modular chain guides
- Custom lift configurations
- Extended stroke capabilities
This flexibility allows engineers to select the optimal system for virtually any vertical transport application.
The Future of Linear Actuator Technology
As industries continue to demand more efficient, compact, and reliable lifting solutions, advanced linear actuators will play an increasingly important role. The SERAPID Vertical LinearBeam combines the benefits of electric drive technology, intelligent control, exceptional strength, and precise motion performance into a single integrated product.
By eliminating many limitations associated with hydraulic systems, ball screw actuators, and conventional lifting technologies, the VLB delivers a modern solution for elevators, freight lifts, and industrial handling applications. With its compact footprint, high load capacity, advanced automation features, and reliable electro-mechanical design, the SERAPID VLB is redefining the future of vertical linear motion systems.
Why Choose SERAPID Vertical LinearBeam?
Key advantages include:
Compact electric design
Precise position control
High load capacity
Long travel distances
Eliminates hydraulic fluids
Smart automation ready
Low maintenance operation
Reliable electro-mechanical drive
Modular chain guides
Encoder-based positioning
Contact SERAPID for Vertical LinearBeam Solutions
From elevators and freight lifts to industrial automation and material handling applications, the SERAPID Vertical LinearBeam delivers a powerful, compact, and reliable lifting solution for modern facilities.
Contact SERAPID today to discuss your project requirements and discover how the VLB can support your vertical transport needs.
