Twin Strand Lift Drive (TSLD®): High-Speed Vertical Motion Powered by Rigid Chain Technology
High-Speed, Precise, and Compact Lifting
As industries demand faster, more precise, and more compact lifting solutions, conventional vertical motion technologies often struggle to balance speed, control, footprint, and reliability. Whether the application involves stage engineering, industrial automation, specialized lift systems, or architectural movement, engineers increasingly require lifting systems that deliver high performance without compromising precision or safety.
The SERAPID Twin Strand Lift Drive (TSLD®) was developed to meet this challenge. Utilizing SERAPID’s proven Rigid Chain Technology (RCT), the TSLD® combines synchronized vertical motion, exceptional positioning accuracy, and a compact mechanical design to create a highly efficient lifting solution for demanding applications.
Designed around an innovative 2:1 hauling mechanism, the Twin Strand Lift Drive delivers increased lift speeds while maintaining full control over extension and retraction, making it an ideal solution for projects requiring rapid, reliable, and repeatable vertical movement.
A New Approach to High-Speed Vertical Lifting
The Twin Strand Lift Drive is based on a unique Linear Beam configuration that incorporates two parallel strands of SERAPID’s rigid chain technology. Unlike conventional lifting systems that rely on hydraulic cylinders, cables, or screw-driven actuators, the TSLD® uses a synchronized dual-chain arrangement to generate a highly efficient lifting action.
One rigid chain strand is anchored to the fixed base frame, while the second strand is connected to the moving top frame. The drive housing is mounted to an intermediate frame and acts as the central lifting element. As the drive rotates, both chain strands work together to create a compounded lifting effect.
The result is a 2:1 hauling ratio, where the effective lift speed is doubled relative to the chain travel speed. This innovative configuration enables rapid vertical movement while maintaining the precise positioning and load control that have become hallmarks of SERAPID lifting technology.
The Advantages of Rigid Chain Technology

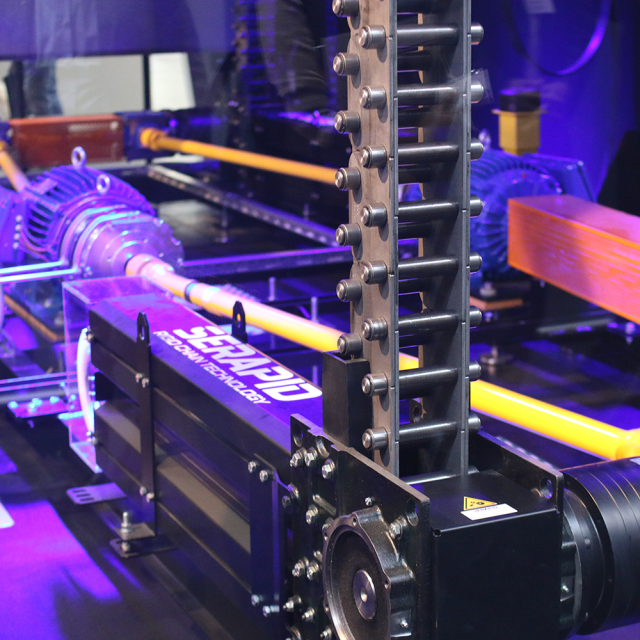

At the core of the Twin Strand Lift Drive is SERAPID’s patented Rigid Chain Technology. Unlike traditional chains, the rigid chain forms a solid load-bearing column during operation while remaining compact and flexible when stored.
This unique characteristic provides several significant advantages for engineers and system designers.
Key Advantages
The TSLD® is engineered around a 2:1 hauling mechanism, allowing the moving platform to travel at twice the speed of the chain itself. This enables higher operating speeds without requiring oversized motors or complex mechanical systems.
Typical system configurations can achieve effective lift speeds of up to 1,000 mm/s while maintaining smooth and controlled motion.
Because the rigid chain retracts into a compact storage housing, the Twin Strand Lift Drive requires significantly less installation space than many conventional lifting technologies.
This makes the system particularly attractive for applications where space is limited or where compact integration is essential to the overall design.
Many high-speed lifting systems sacrifice positioning accuracy in favor of performance. The TSLD® delivers both.
Rigid Chain Technology provides highly repeatable positioning and controlled motion throughout the lift cycle, making it ideal for applications that require accurate stop positions, synchronized movement, or repeatable automated sequences.
The Twin Strand Lift Drive achieves high-speed performance through its innovative lifting geometry rather than through additional mechanical assemblies. This reduces the number of required components while improving overall system efficiency and reliability.
Designed for Demanding Applications
The combination of speed, precision, and compact design makes the Twin Strand Lift Drive suitable for a wide range of specialized lifting applications.

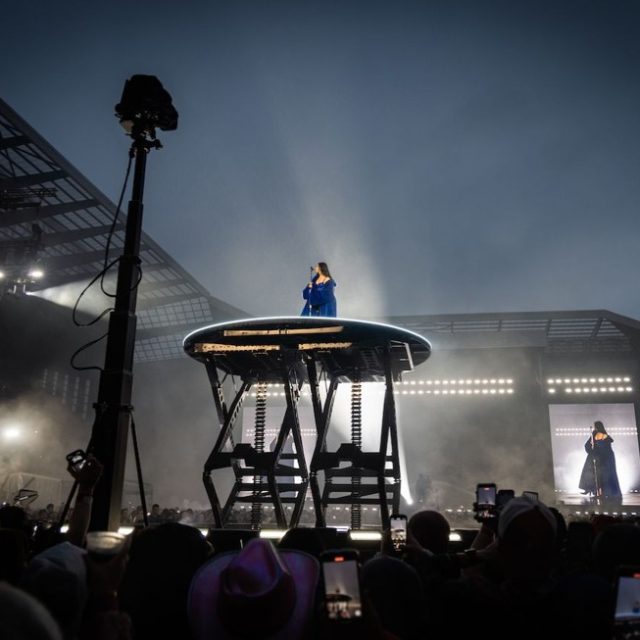

Modern theatres, concert venues, and performance spaces increasingly rely on dynamic stage systems capable of rapid and synchronized movement. The TSLD® provides precise vertical positioning for stage lifts, orchestra platforms, scenic elements, and automated performance equipment.
Its smooth operation and repeatable motion profiles help ensure consistent performance in demanding live environments.
Manufacturing and automation systems often require high-speed vertical transfer of products, equipment, or tooling. The TSLD® offers a reliable electro-mechanical solution for automated production lines, robotic integration, assembly systems, and specialized material handling applications.
Architects and designers are increasingly incorporating moving structures into modern buildings. The Twin Strand Lift Drive can be integrated into automated floors, retractable platforms, kinetic architecture, and other custom motion applications where compact design and precise control are critical.
The technology is also well suited for custom lift projects that require synchronized movement, high acceleration, and accurate positioning in a confined space.
Built-In Safety and Performance Features
Safety and reliability remain fundamental considerations in every SERAPID lifting solution.
The Twin Strand Lift Drive can be configured with advanced safety and monitoring systems to support demanding operational requirements.
Safety and Performance Features
A SIL3-certified safety rotary encoder can be integrated into the drive system to provide high-integrity position monitoring and support compliance with functional safety standards.
Load cells can be incorporated at strategic locations within the system to provide continuous load measurement and real-time diagnostics. This allows operators to monitor performance, detect overload conditions, and improve overall system reliability.
For applications involving personnel access or public environments, protective safety skirts can be integrated around the moving platform to prevent access to potential pinch points during operation.
The Twin Strand Lift Drive can be paired with servo motors or variable-frequency drive (VFD) systems to optimize acceleration profiles, positioning accuracy, and overall dynamic performance.
Motion parameters can be customized to suit the specific requirements of each application, including noise reduction, load optimization, and structural considerations.
High Performance with Full Control
One of the defining characteristics of the Twin Strand Lift Drive is its ability to achieve rapid motion without sacrificing control.
Unlike some high-speed lifting technologies that become difficult to synchronize or manage at elevated speeds, the TSLD® maintains full control over both extension and retraction throughout the motion cycle.
This controlled telescopic movement provides smooth operation, predictable performance, and exceptional repeatability — critical factors in automated and mission-critical applications.
Sustainable Electro-Mechanical Lifting
As industries move toward more sustainable engineering solutions, electro-mechanical lifting technologies continue to replace hydraulic systems.
The Twin Strand Lift Drive supports this transition through an oil-free design that eliminates hydraulic fluids, reduces environmental risks, and simplifies maintenance requirements.
Combined with SERAPID’s proven mechanical reliability, the result is a sustainable lifting solution designed for long-term operation and reduced lifecycle costs.
Partner with SERAPID for Advanced Lifting Solutions
The Twin Strand Lift Drive represents the latest evolution of SERAPID’s Rigid Chain Technology, delivering high-speed vertical motion, precise positioning, and compact integration in a single innovative system.
Whether your project involves industrial automation, stage engineering, architectural movement, or a custom lifting application, the TSLD® provides a powerful alternative to conventional lifting technologies.
By combining speed, precision, safety, and efficiency, the Twin Strand Lift Drive helps engineers and designers create next-generation lifting systems capable of meeting the most demanding performance requirements.
